Fast Fill Systems offer a pressureless bulk diesel filling option which further enhances environmental objectives by eliminating diesel spillage, whilst protecting the diesel tank from rupturing due to pressurisation during filling. The savings our customers have experienced from the prevention of diesel spillage, diesel theft, and the environmental costs associated with diesel spillage is unprecedented. With a range of 5 nozzles, all constructed of quality material, we are able to assist with each client’s specific requirements.
The N800AT excels in managing diesel fuel with unmatched versatility, seamlessly fitting various R150 style receivers. Its robust yet sleek design enhances maneuverability without compromising durability. With flow rates of 95 to 800 LPM (25 to 211 GPM).

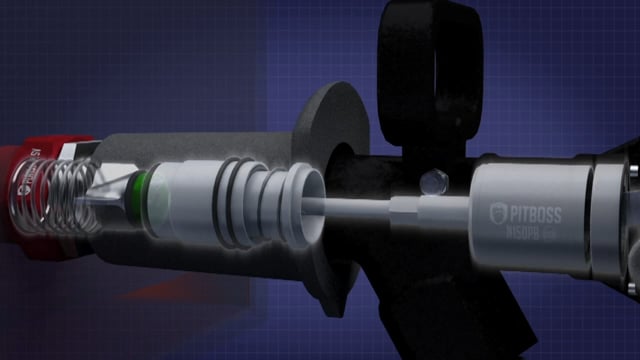

The anodized aluminium check valve installs in the fuel tank to prevent fuel theft and allows the receiver to be replaced without draining the tank. This patented Check Valve Receiver is a solution for any application. One-way check valve receiver for diesel fuel for use with pressurized shut-off configurations max flow rate 800 litres/min. Spray back is eliminated if the poppet gets stuck open from debris or poppet malfunction and fuel theft is minimized by making it harder to get the fuel out without the proper tools. With this Check Valve installed any receiver issues will be minimized to less than 6 fluid ounces of fuel loss. u.
FAST FILL SYSTEMS PLA80-HVSC The PLA80-HVSC brings Smaller Tank Pressureless fuelling to applications where it was once unavailable. This all-in-one drop-in system fits standard 2” NPT inlets and enables individual tank fill and shutoff for single or multi tank configurations. Diesel Applications: Once the fuel level reaches 90-95% capacity, each tank will automatically shut off, eliminating under/over filling. The auto shut-off feature works with all standard fuel nozzles (up to 80 GPM). With filtered venting and a dry break fill point, contamination is dramatically decreased. Applications agriculture, small construction, oil extraction and mass transit equipment because of its compact design and ease of installation.
Cross contamination, which is a regular occurrence, can be completely eliminated with the use of the Matrix range. With 12 colours in the range, more than just the traditional functions can be catered for. The special design makes it impossible for two different colours to be coupled. A universal evac coupler can however be used on all receivers to extract all products to a waste tank, thereby speeding up service procedures.
Give customers a reason to do business with you.
FAST FILL FLAT FACE MATRIX COUPLERS
Flat Face couplers are available in 12 different Nozzle-Receiver pairs. By interlocking only with the corresponding color-coordinated receiver, the Flat Face Matrix line eliminates cross contamination completely.
• 3/4” FNPT standard nozzle threads
• 3/4” MNPT standard receiver threads
• 1” FNPT nozzle available
• 3/4” FNPT receiver available
• #12 JIC threads available
Evacuation Tool
To complete the line, we offer the FFET290. The evacuation tool universally couples with all Flat Face receivers, providing a quick solution to draining fluid. By utilizing a one-way check valve, the possibilities of cross contamination are reduced to zero.
