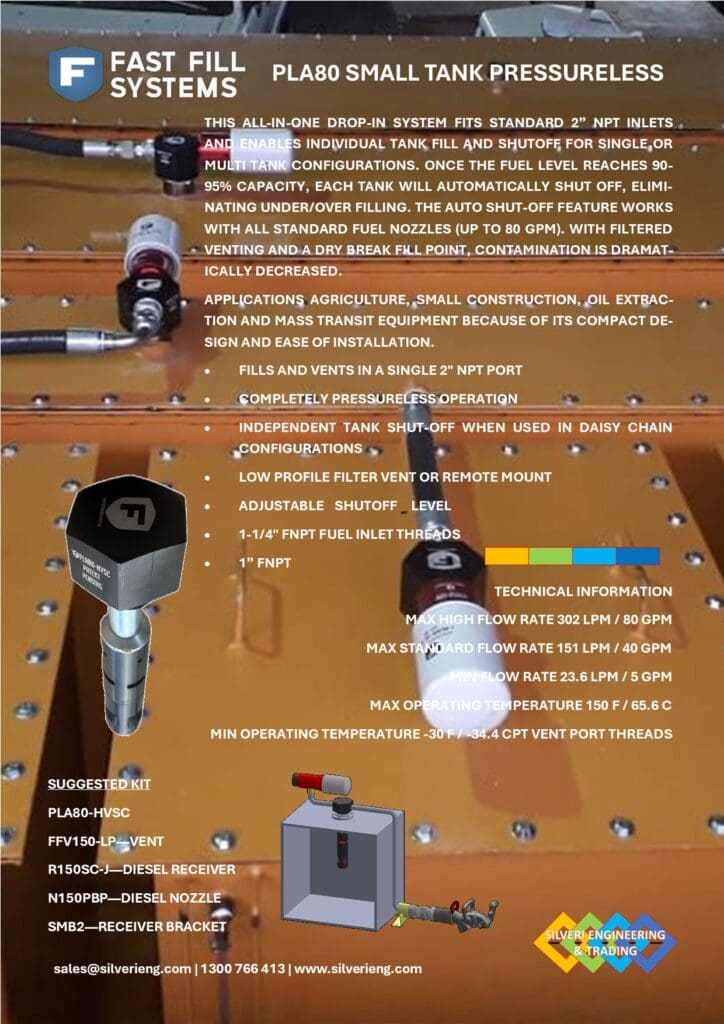

PLA80-HVSC FAST FILL SYSTEMS PRESSURELESS SYSTEM

This all-in-one drop-in system fits standard 2” NPT inlets and enables individual tank fill and shutoff for single or multi tank configurations. Once the fuel level reaches 90-95% capacity, each tank will automatically shut off, eliminating under/over filling. The auto shut-off feature works with all standard fuel nozzles (up to 80 GPM). With filtered venting and a dry break fill point, contamination is dramatically decreased.

Applications agriculture, small construction, oil extraction and mass transit equipment because of its compact design and ease of installation.

· Fills and vents in a single 2″ NPT port

· Completely pressureless operation

· Independent tank shut-off when used in daisy chain configurations

· Low profile filter vent or remote mount

· Adjustable shutoff level

· 1-1/4″ FNPT fuel inlet threads

· 1” FNPT

TECHNICAL INFORMATION

Max High Flow Rate 302 LPM / 80 GPM

Max Standard Flow Rate 151 LPM / 40 GPM

Min Flow Rate 23.6 LPM / 5 GPM

Max Operating Temperature 150 F / 65.6 C

Min Operating Temperature -30 F / -34.4 CPT vent port threads

Standard weight: 3.92 lbs | 1.78 kg
