PAGULD HPG2 HYDRAULIC PUMP
PAGULD HPG2 Hydraulic Grease Pump
(Ideally replaces the SKF Lincoln FlowMaster Hydraulic Pump 85733)
Heavy-Duty Automatic Lubrication for Mining & Industrial Equipment
The PAGULD HPG2 Hydraulic Grease Pump is a robust, hydraulically operated lubrication pump designed for demanding mining, construction and industrial applications.
Powered by the equipment’s existing hydraulic system, the HPG2 delivers consistent, high-pressure grease to critical lubrication points, helping reduce manual greasing, maintenance requirements and equipment downtime.
Designed for integration with centralised automatic lubrication systems, the HPG2 is presented as a replacement option for the SKF/Lincoln Hydraulic FlowMaster 85733, subject to application compatibility.
Key Features
- High-pressure performance: Maximum grease system pressure of 350 bar (35 MPa).
- Hydraulic operation: Utilises the machine’s existing hydraulic power supply.
- 24 VDC solenoid control: Suitable for integration with compatible lubrication controllers.
- Flexible reservoir capacities: 16 kg, 27 kg, 41 kg, 54 kg and 180 kg.
- Heavy-duty construction: Designed for harsh mining and industrial environments.
- Automatic lubrication: Compatible with suitable progressive grease distribution systems.
- Lubricant compatibility: Suitable for grease up to NLGI Grade 2.
Technical Specifications
| Parameter | Specification |
|---|---|
| Maximum grease pressure | 350 bar |
| Hydraulic supply pressure | Max. 205 bar |
| Reduced hydraulic pressure | 7–23 bar |
| Hydraulic flow rate | Max. 7.6 L/min |
| Pressure ratio | 10:1 |
| Displacement per cycle | 1.15 cm³ |
| Solenoid voltage | 24 VDC |
| Pump outlet | ¼” NPTF Female |
| Operating temperature | −40°C to +65°C |
| Protection rating | IP65 |
Applications
Ideal for automatic lubrication systems installed on mining haul trucks, excavators, wheel loaders, draglines and other heavy mobile or stationary equipment.
Available through Silveri Engineering & Trading Pty Ltd, providing product selection, technical assistance and lubrication solutions throughout Australia and Southeast Asia.

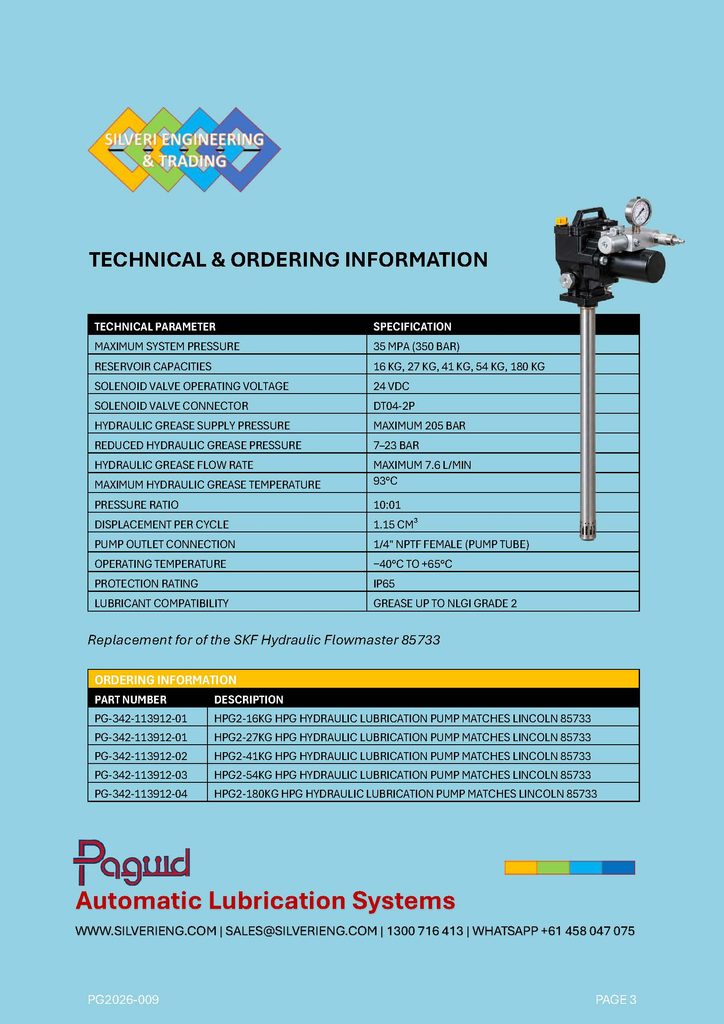

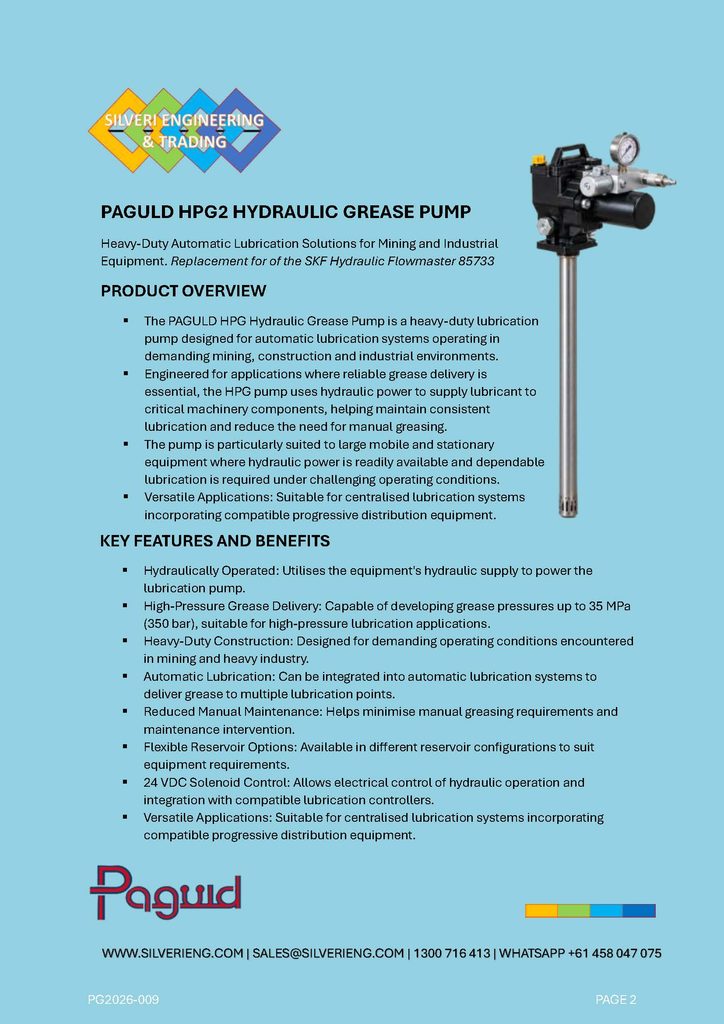

PAGULD HPG2 Hydraulic Pump brochure, PG2026-009, pages 2–3. The brochure contains inconsistent ordering part numbers between pages 3 and 4, which should be checked before publication.
