FAST FILL SYSTEMS – PRESSURELESS – REMOTE
Fast Fill Systems USA | Distributed by Silveri Engineering & Trading Pty Ltd
Product Overview
The Fast Fill Pressureless Remote Refuelling System is designed to provide a safe, efficient and reliable diesel refuelling solution for mining, construction and heavy industrial equipment fitted with non-pressurised fuel tanks.
Unlike conventional pressurised fast-fill systems, the pressureless remote arrangement allows diesel fuel to be delivered into the tank while maintaining atmospheric venting.
The system incorporates a remote-mounted receiver, pressureless shut-off assembly, fuel-level sensing components and associated signal lines to control the refuelling process.
This arrangement is particularly suitable for equipment where the fuel tank is difficult to access or where a remote refuelling point is required to improve operator accessibility.
Key Features & Benefits
- Remote refuelling capability: Allows the refuelling receiver to be positioned at a convenient and accessible location.
- Automatic fuel shut-off: Designed to terminate fuel delivery when the predetermined fuel level is reached.
- Pressureless tank operation: Eliminates the need to pressurise the fuel tank to achieve automatic shut-off.
- High-flow capability: Selected configurations can support refuelling rates up to 800 L/min, subject to component selection and installation conditions.
- Heavy-duty construction: Components are designed for demanding mining and industrial environments.
- Reduced spillage risk: Correctly installed shut-off and venting components help prevent overfilling.
- Flexible installation: Suitable for a range of mobile mining and heavy equipment applications.

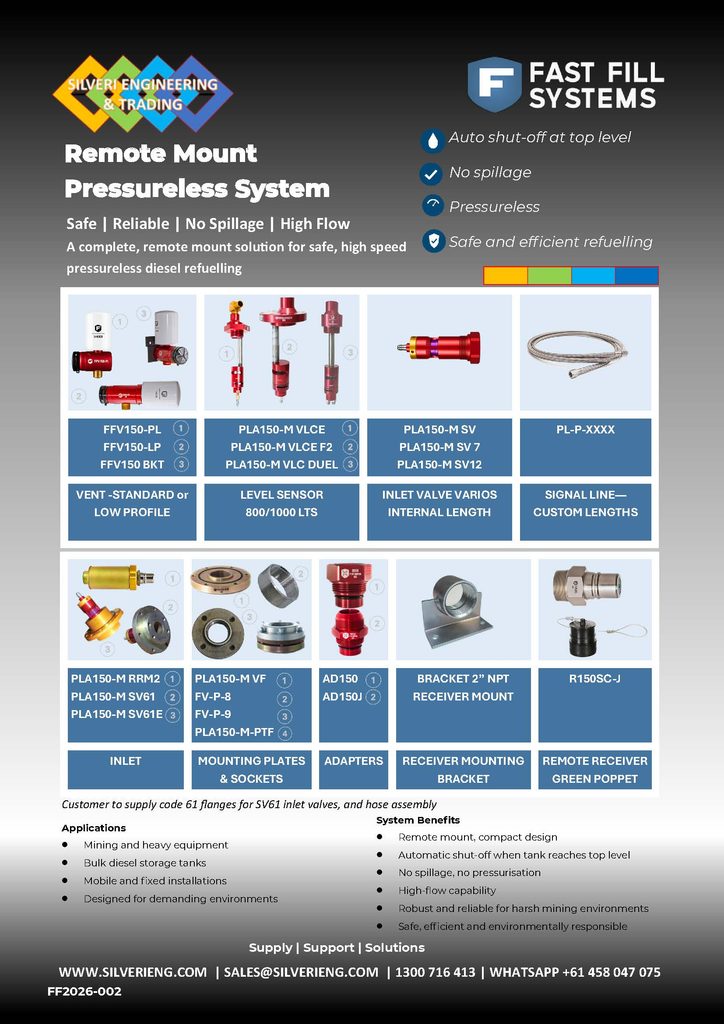

Main System Components
| Component | Part Number | Function |
|---|---|---|
| Vent Level Controller | PLA150-M-VLCE | Senses the predetermined fuel level and provides the shut-off signal |
| Filtered Vent Assembly | FFV150-PL | Provides filtered tank breathing with 3-micron filtration |
| Diesel Inlet Shut-off Valve | PLA150-M-SV | Controls incoming diesel flow and closes when the shut-off signal is activated |
| Remote Receiver | R150SC-J | Provides the remote nozzle connection with protective cap |
| Remote Mount Adaptor | AD150 / AD150J | Connects the remote receiver arrangement to the shut-off assembly |
| Signal Line | PL-P-6 | Transfers the control signal between the level controller and inlet shut-off valve |
| Remote Shut-off Assembly | PLA150-M-RRM-2 | Alternative remote assembly used in selected external signal-line configurations |
Component selection varies depending on whether the installation uses an internal or external signal line.
Technical & Installation Considerations
The pressureless remote system must be correctly configured to achieve reliable automatic shut-off.
- Fuel flow: Standard PLA150 configurations are rated from 95 to 568 L/min. Higher-flow systems require appropriately rated components.
- Tank clearance: The standard VLCE requires approximately 102 mm operating headspace and 406 mm installation clearance.
- Signal line: Must be correctly sized, routed and connected without restrictions.
- Fuel hose: Diameter, length and bends must be considered to minimise pressure losses and ensure suitable flow.
- Ventilation: The filtered vent must provide adequate air displacement during filling.
- Shut-off level: Must be adjusted to provide suitable ullage and prevent overfilling.
Fast Fill Systems
+1
Applications
Fast Fill Pressureless Remote Systems are suitable for appropriately configured:
- Mining haul trucks and wheel loaders
- Excavators and bulldozers
- Underground mining equipment
- Construction and earthmoving machinery
- Industrial diesel-powered equipment
Silveri Engineering – Product Support
Silveri Engineering & Trading Pty Ltd supplies Fast Fill Systems USA components throughout Australia and Southeast Asia, providing technical advice, product selection and installation support.
Our Melbourne-based inventory enables us to support customers, distributors and maintenance teams with replacement components and complete refuelling system solutions.
