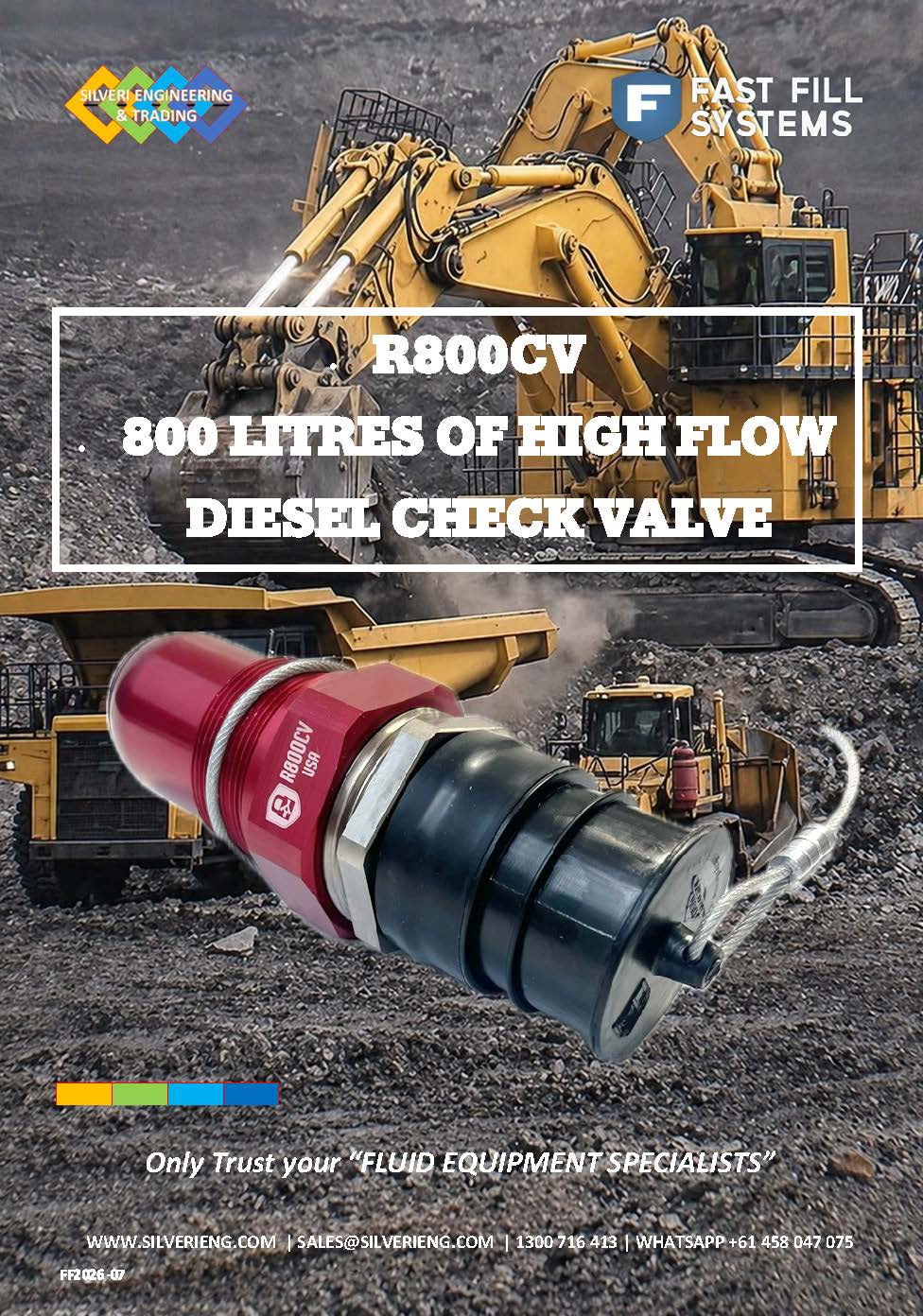

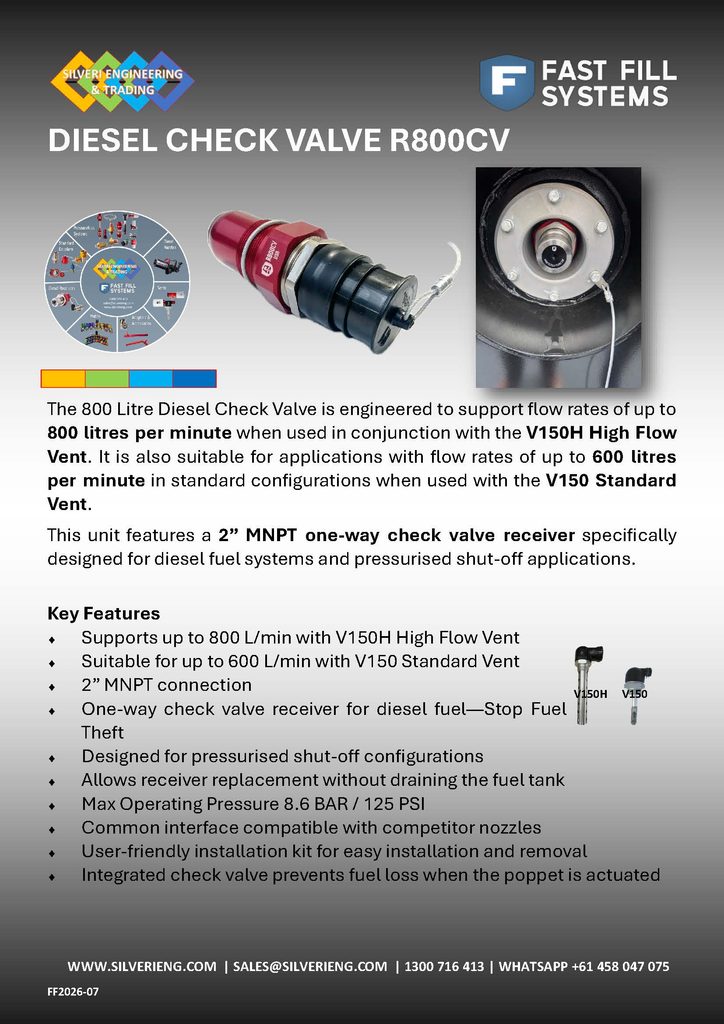

FAST FILL SYSTEMS R800CV DIESEL CHECK VALVE
The R800CV is designed for high-flow diesel refuelling systems with pressurised shut-off. Its integrated one-way check valve helps prevent reverse fuel flow and allows receiver replacement without draining the fuel tank.
- Up to 800 L/min when paired with the V150H High Flow Vent.
- Up to 600 L/min when paired with the V150 Standard Vent.
- 2-inch MNPT connection.
- Maximum operating pressure: 8.6 bar (125 PSI).
- Common receiver interface for compatible competitor nozzles.
- Installation kit supports straightforward fitting and removal.
- Integrated check valve prevents fuel loss when the receiver poppet is actuated.
Contact Silveri Engineering for product selection and application assistance:
1300 716 413 | sales@silverieng.com | www.silverieng.com
