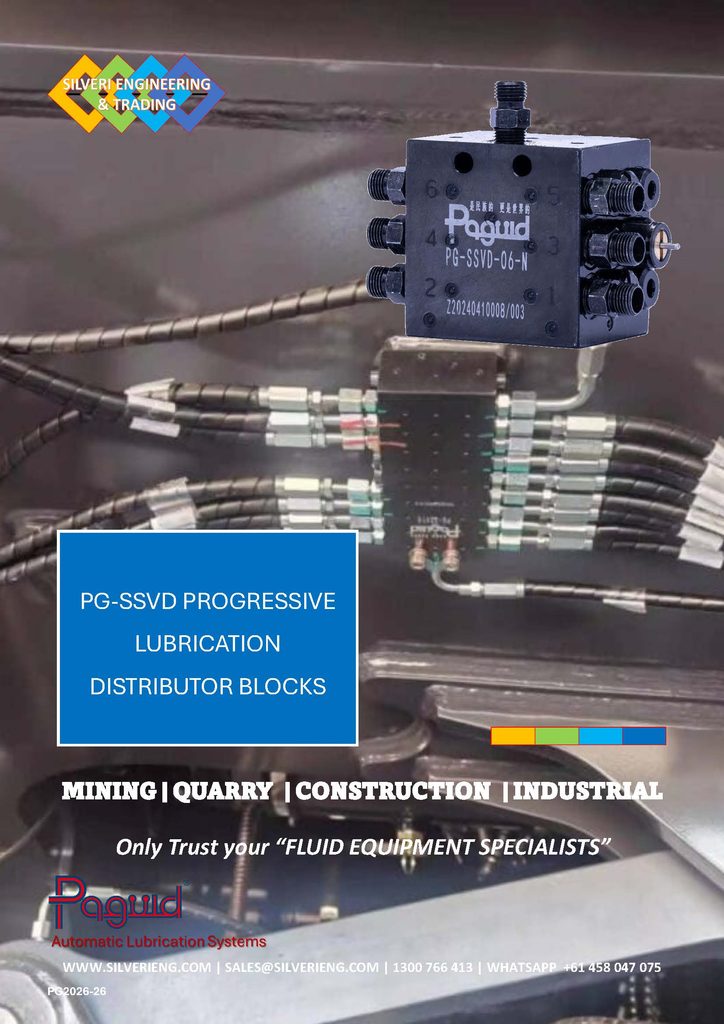

PAGULD PG-SSVD PROGRESSIVE LUBRICATION DISTRIBUTOR BLOCKS
Adjustable Precision Grease Distribution for Mining & Heavy Equipment
High-Performance Automatic Lubrication Solutions
The PAGULD PG-SSVD Progressive Distributor Blocks are engineered to provide precise, reliable and adjustable grease distribution for automatic lubrication systems operating in demanding mining, quarrying, construction and industrial environments.
Unlike conventional fixed-displacement progressive distributors, the PG-SSVD features individually adjustable outlet discharge volumes, allowing grease delivery to be tailored to the specific lubrication requirements of individual bearings and components.
Using interchangeable metering screws, grease delivery can be adjusted even after installation, providing flexibility without replacing the complete distributor block.
Key Features & Benefits
- Adjustable Grease Delivery: Individual outlet displacement options from 0.08 cm³ to 1.8 cm³.
- High-Pressure Performance: Maximum operating pressure of 350 bar.
- Multiple Outlet Configurations: Available from 6 to 22 outlets.
- Interchangeable Metering Screws: Allows quick adjustment of grease output to individual lubrication points.
- Flexible Distribution: Multiple outlet discharges can be combined to increase grease delivery where required.
- Heavy-Duty Construction: Carbon steel with galvanised nickel-alloy finish for demanding operating environments.
- Wide Temperature Range: Operating temperature from −40°C to +80°C.
- Replacement Compatibility: Can be substituted for selected Lincoln SSVD divider blocks and used in compatible Lincoln P203 lubrication systems, subject to application verification.

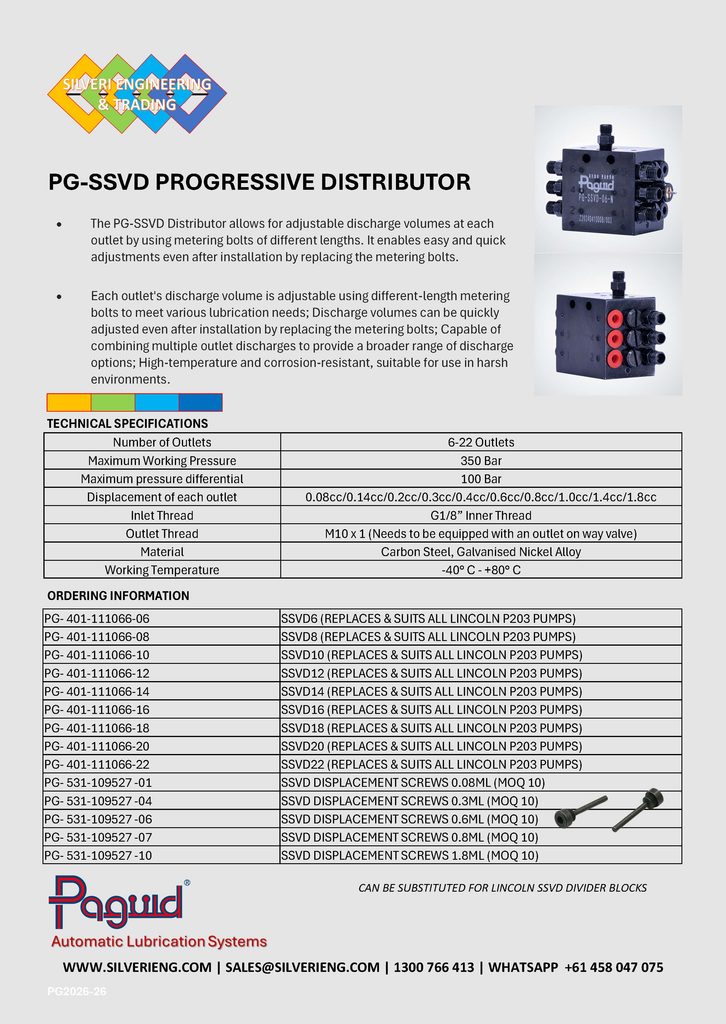

Technical Specifications
| Parameter | Specification |
|---|---|
| Available outlets | 6–22 |
| Maximum working pressure | 350 bar |
| Maximum pressure differential | 100 bar |
| Displacement per outlet | 0.08–1.8 cm³ |
| Inlet connection | G1/8″ Female |
| Outlet connection | M10 × 1 |
| Construction | Carbon steel, galvanised nickel alloy |
| Operating temperature | −40°C to +80°C |
Available Configurations
The PG-SSVD range is available in 6, 8, 10, 12, 14, 16, 18, 20 and 22-outlet configurations.
Interchangeable metering screws provide discharge volumes of 0.08, 0.14, 0.2, 0.3, 0.4, 0.6, 0.8, 1.0, 1.4 and 1.8 cm³ per outlet.
Typical Applications
- Mining excavators, haul trucks and wheel loaders
- Bulldozers and earthmoving equipment
- Quarrying and construction machinery
- Industrial production equipment
- Centralised progressive automatic lubrication systems
Silveri Engineering – Technical Support & Supply
Silveri Engineering & Trading Pty Ltd supplies PAGULD automatic lubrication pumps, progressive distributor blocks, grease lines, fittings and associated components throughout Australia and Southeast Asia.
Our team provides technical assistance with component selection, replacement applications and complete lubrication system configurations.
